| 品牌 : | 英國（UKCAMERON）卡麥隆 | 型號 : | UKCAMERON |
| 結構形式 : | 垂直板式 | 加工定制 : | 是 |
| 材質 : | 球墨鑄鐵 | 連接形式 : | 法蘭 |
| 適用介質 : | 水 | 壓力環境 : | 低壓 |
| 工作溫度 : | 常溫 | 標準 : | 國標 |
| 流動方向 : | 單向 | 驅動方式 : | 手動 |
| 零部件及配件 : | 手輪 | 用途 : | 截止 |
| 類型(通道位置) : | 直動式 | 口徑 : | DN50~DN1200 |
| 公稱通徑 : | DN50~DN1200 | 安裝尺寸 : | 以產品為準 |
產品簡介：
原產地:Tianjin, China? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??品牌:英國（UKCAMERON）卡麥隆
型號:CDTFR2E? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?應用:工業，建筑，食品，化學工業和發電廠
材質:鑄鐵，不銹鋼，球墨鑄鐵? ? ? ? ? ? ? ? ? ? ? ? ? ? 動力:螺線管 (根據客戶要求)? ? ? ? ? ? ? ? ? ? ? ??
流動介質:液體、氣體等? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 接口尺寸:DN50-DN2000
標準或非標準:標準? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??溫度:-20℃ ? 80℃
體:不銹鋼，球墨鑄鐵? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? 閥盤:CF8，QT450
閥桿:416 (2Cr13)? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?閥座:三元乙丙
大小:標準尺寸? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??中壓:PN1.0/1.6MPa
適用介質:水，油，氣體，蒸汽，酸，堿? ? ? ? ? ? ? ? ? ? 制造標準:GB/T 122387-89

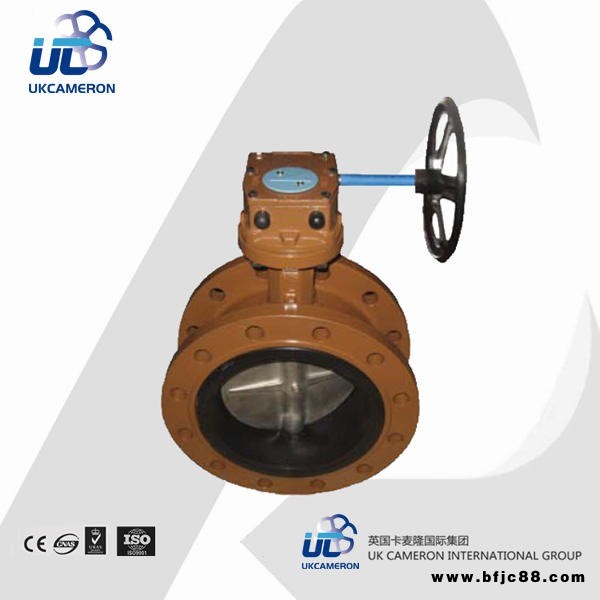

本公司生產的渦輪法蘭蝶閥，廣泛應用于公稱壓力：≤PN1.6Mpa,適用溫度：≤200℃的石油、化工、食品、醫藥、冶金、船舶、造紙、工業環保、給排水、高層建筑管道上，可在多種腐蝕性、非腐蝕性的氣體、液體、裝流體及固體粉末管線和容器作啟閉或調節介質流量之用。
產品特點：
1、這種材料雖然重量輕，但具有良好的延展性和防裂結構，并以改善橡膠形狀和降低扭矩為特點。
2、即使在1.96MPa的條件下，也能長期保持高可靠的密封性能和耐久性。
3、在用蝶閥代替現有閘閥時，容易更換，而不在現有管道之間放置短管道。
4、是一種閥體內完全采用橡膠襯里加工的閥門，與水系統用閘閥相比，管道之間的尺寸相同。
Specification（規范）
| NO. | Part Name | Material | Optional Material |  | |
| 1 | Body | DI | CI, WCB, Stainless Steel | ||
| 2 | Seat | NBR | EPDM, FKM | ||
| 3 | Disc | Plated Ductile Iron | ASTM A351 CF8/CF8M, B148 C954 | ||
| 4 | Middle Bearing | F4 | Bronze | ||
| 5 | Shaft | ASTM A276 416 | 316, 17-4PH | ||
| 6 | Upper Bearing | F4 | Bronze | ||
| 7 | O Ring | NBR | EPDM, FKM | ||
| 8 | Pin | ASTM A276 416 | 316 | ||
?
Dimensions data尺寸參數(mm)
?
| DN | A | B | C | H | F | ΦD | N-Φd1 | Φd | M1 | EN1092-2 PN10 | EN1092-2 PN16 | ||
| ΦK | n-ΦK1 | ΦK | n-ΦK1 | ||||||||||
| DN50 | 110 | 83 | 108 | 32 | 90 | 70 | 4-Φ10 | 12.6 | 3 | 125 | 4-Φ19 | 125 | 4-Φ19 |
| DN65 | 131 | 93 | 112 | 32 | 90 | 70 | 4-Φ10 | 12.6 | 3 | 145 | 4-Φ19 | 145 | 4-Φ19 |
| DN80 | 134 | 100 | 114 | 32 | 90 | 70 | 4-Φ10 | 12.6 | 3 | 160 | 8-Φ19 | 160 | 8-Φ19 |
| DN100 | 150 | 114 | 127 | 32 | 90 | 70 | 4-Φ10 | 15.8 | 5 | 180 | 8-Φ19 | 180 | 8-Φ19 |
| DN125 | 170 | 125 | 140 | 32 | 90 | 70 | 4-Φ10 | 18.92 | 5 | 210 | 8-Φ19 | 210 | 8-Φ19 |
| DN150 | 180 | 143 | 140 | 32 | 90 | 70 | 4-Φ10 | 18.92 | 5 | 240 | 8-Φ23 | 240 | 8-Φ23 |
| DN200 | 210 | 170 | 152 | 45 | 125 | 102 | 4-Φ12 | 22.1 | 5 | 295 | 8-Φ23 | 295 | 12-Φ23 |
| DN250 | 246 | 198 | 165 | 45 | 125 | 102 | 4-Φ12 | 28.45 | 8 | 350 | 12-Φ23 | 355 | 12-Φ28 |
| DN300 | 276 | 223 | 178 | 45 | 150 | 125 | 4-Φ14 | 31.6 | 10 | 400 | 12-Φ23 | 410 | 12-Φ28 |
| DN350 | 328 | 254 | 190 | 45 | 150 | 125 | 4-Φ14 | 31.6 | 10 | 460 | 16-Φ23 | 470 | 16-Φ28 |
| DN400 | 343 | 278 | 216 | 50 | 197 | 140 | 4-Φ18 | 33.15 | 10 | 515 | 16-Φ28 | 525 | 16-Φ31 |
| DN450 | 407 | 320 | 222 | 50 | 197 | 140 | 4-Φ18 | 37.95 | 10 | 565 | 20-Φ28 | 585 | 20-Φ31 |
| DN500 | 448 | 329 | 229 | 60 | 197 | 140 | 4-Φ18 | 41.12 | 10 | 620 | 20-Φ28 | 650 | 20-Φ34 |
| DN600 | 518 | 384 | 267 | 70 | 210 | 165 | 4-Φ22 | 50.62 | 16 | 725 | 20-Φ31 | 770 | 20-Φ37 |
| DN700 | 560 | 450 | 292 | 109 | 300 | 254 | 8-Φ18 | 63.35 | 16 | 840 | 24-Φ31 | 840 | 24-Φ37 |
| DN800 | 620 | 501 | 318 | 119 | 300 | 254 | 8-Φ18 | 63.35 | 22 | 950 | 24-Φ34 | 950 | 24-Φ41 |
| DN900 | 692 | 550 | 330 | 157 | 300 | 254 | 8-Φ18 | 75 | 22 | 1050 | 28-Φ34 | 1050 | 28-Φ41 |
| DN1000 | 735 | 622 | 410 | 207 | 300 | 254 | 8-Φ18 | 85 | 22 | 1160 | 28-Φ37 | 1170 | 28-Φ44 |
| DN1200 | 917 | 763 | 470 | 210 | 350 | 398 | 8-Φ22 | 105 | 28 | 1380 | 32-Φ41 | 1390 | 32-Φ50 |
英國(UKCAMERON)卡麥隆國際集團是歐州流體控制領域的主要生產和供應商之一，公司總部位于英國英格蘭，公司致力于科研開發，生產流體控制設備系統，在許多個國家均有生產基地。其產品遠銷世界各國 ，在世界200多個地區均有代理商。英國Cameron國際集團主要產品有：進口電動球閥、進口電動蝶閥、進口氣動蝶閥、進口氣動球閥、進口截止閥、進口電磁閥、進口疏水閥等一系列工業上常用配件。
進口電動球閥是一種轉角90°的旋轉類球閥， 流體阻力小、球閥是所有發類中流體阻力 小的一種，即使是縮徑球閥，其流體阻力也相當小。止推軸承減小閥桿摩擦力矩，可使用閥桿長期操作平衡靈活。閥座密封性能好，采用聚四氟乙烯等材料制成的密封圈，結構易于密封，而且球閥的閥封能力隨著介質的壓力增大而增大。閥桿密封可靠，由于閥桿只做旋轉運動而不是升降運動，閥桿的填料密封不易破壞，且密封能力隨著介質的壓力增設而增大，由于聚四氟乙烯材料具有良好的自潤滑性，與球體的摩擦損失小，幫球閥的使用壽命長。下裝式閥桿和閥桿頭部凸階防止閥桿噴出，如果火災造成閥桿密封破壞，凸階與閥體間還可以形成金屬接觸，確保閥桿密封配用ODL、OHQ等高性能執行機構、產品通常用于密封要求嚴格的場合，除控制氣體、液體、蒸汽介質外，還適宜控制污水和含有纖維性雜質的介質，廣泛用于石油、化工、冶金、輕工、造紙、電站、制冷等工作領域。
翻譯：
Description of imported Electric Flanged Ball Valves
UKCAMERON International Group is one of the main producers and suppliers in the field of fluid control in Europe. Its headquarters is in England, UK. The company is committed to scientific research and development, and produces fluid control equipment systems. It has production bases in many countries. Its products are sold all over the world and have agents in more than 200 regions of the world. Cameron International Group's main products are: imported electric ball valves, imported electric butterfly valves, imported pneumatic butterfly valves, imported pneumatic ball valves, imported globe valves, imported solenoid valves, imported traps and a series of commonly used industrial accessories.
imported electric ball valve is a kind of rotary ball valve with 90 degrees rotation angle. The fluid resistance of the ball valve is the smallest among all kinds of ball valves. Even the shrink ball valve, its fluid resistance is quite small. Thrust bearing reduces the friction moment of the valve stem, and can use the valve stem for long-term operation, balance and flexibility. Seat sealing performance is good. The sealing ring made of PTFE and other materials is easy to seal, and the sealing capacity of the ball valve increases with the increase of medium pressure. Stem sealing is reliable. Because the stem only rotates rather than lifts, the packing seal of the stem is not easy to be damaged, and the sealing ability increases with the increase of medium pressure. Because PTFE material has good self-lubrication, small friction loss with the sphere, and long service life of the ball-help valve. Bottom-mounted stem and convex step of stem head prevent stem from ejecting. If fire causes stem seal damage, metal contact can also be formed between convex step and valve body. It ensures that high-performance actuators such as ODL and OHQ are used for stem seal, and products are usually used in situations with strict sealing requirements. Besides controlling gas, liquid and steam medium, sewage and media containing fibrous impurities are also suitable for control. Quality, widely used in petroleum, chemical industry, metallurgy, light industry, papermaking, power plants, refrigeration and other fields.
